Introduction

Apache Tomcat is a free, open-source, lightweight application server used for Java-based web applications. Developers use it to implement Java Servlet and JavaServer Pages technologies (including Java Expression Language and Java WebSocket).

Read this guide to learn how to install and configure Apache Tomcat on Ubuntu 18.04.

how to install tomcat centos


Note: These steps apply to other Ubuntu-based distributions, including Ubuntu 16.04, Linux Mint, and Elementary OS.


Prerequisites

  • An Ubuntu-based distribution (such as Ubuntu 18.04)
  • A user account with sudo privileges
  • A terminal window (CtrlAltT)
  • The apt package manager, included by default

Steps for Installing Tomcat 9 on Ubuntu

Check if Java is Installed

Before you can download and install Tomcat, make sure you have the required Java installation for Ubuntu (OpenJDK).

Open the terminal (Ctrl+Alt+T) and use the following command check the Java version:

java –version

The output will show the Java version running on your system. Currently, the latest release is OpenJDK 11.0.3:

Determine the version of Java currently installed.

Install OpenJDK

If you do not have OpenJDK or have a version older than Java 8, install the newest release by typing the following:

sudo apt install default-jdk

Create Tomcat User and Group

For security reasons, do not run Tomcat under the root user. Create a new group and system user to run the Apache Tomcat service from the /opt/tomcat directory.

sudo groupadd tomcat
sudo useradd -s /bin/false –g tomcat –d /opt/tomcat tomcat

Create Tomcat User and Group.

Download Tomcat 9

1. Download the latest binary Tomcat release navigate to the official Apache Tomcat Download page.

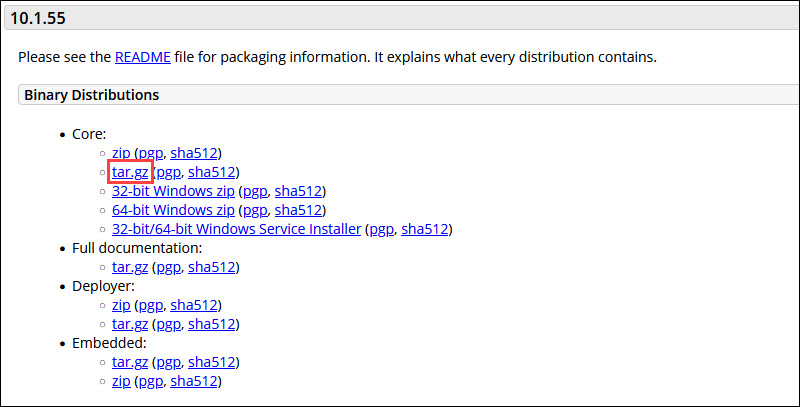

2. On it, find the Binary Distributions > Core list and the tar.gz link in it. Copy the link of the file.

Locate latest Tomcat release.

3. Go back to the terminal and change to the /tmp directory with the command:

cd /tmp

4. Now, use the curl command with the tar.gz link you copied in step 2 to download the package:

curl -O http://www-us.apache.org/dist/tomcat/tomcat-9/v9.0.20/bin/apache-tomcat-9.0.20.tar.gz

Use the curl command to download the Tomcat package.

Extract tar.gz File

1. To extract the tar.gz Tomcat file, create a new /opt/tomcat/ directory with the command:

sudo mkdir /opt/tomcat

2. Then, extract the file in the new directory with the following command:

sudo tar xzvf apache-tomcat-9*tar.gz –C /opt/tomcat –strip-components=1

Extract tar.gz file.

Modify Tomcat User Permission

The new Tomcat user you created does not have executable privileges, but it needs to access the installation directory. You need to setup execute privileges over the directory.

1. Move to the directory where the Tomcat installation is located:

cd /opt/tomcat

2. Grant group ownership over the installation directory to the tomcat group with the command:

sudo chgrp –R tomcat /opt/tomcat

3. Also, give it read access to the conf directory and its contents by typing:

sudo chmod –R g+r conf

4. Followed by changing directory permissions to grant execute access with:

sudo chmod g+x conf

5. Finally, give the tomcat user ownership of the webapps, work, temp, and logs directories using the command:

sudo chown –R tomcat webapps/ work temp/ logs

tomcat user permissions modified

Create System Unit File

Since you are going to to use Tomcat as a service, you need to create a systemd service file.

1. To configure the file, you first need to find the “JAVA_HOME” path. This is the exact location of the Java installation package.

To do so, prompt the system to give you information about the Java packages installed on the system. In the terminal, type:

sudo update-java-alternatives -1

Create a systemd service file.

As the output shows, there are two available versions of Java. Accordingly, it also shows two paths displaying their location.

Choose the version you want to use and copy its location. With that, you can move on to create the service file.

2. Create and open a new file in the /etc/system/system under the name tomcat.service:

sudo nano /etc/systemd/system/tomcat.service

3. Once the file opens, copy and paste the content below, changing the JAVA_HOME value to the information you found in the previous step.

[Unit]
Description=Apache Tomcat Web Application Container
After=network.target

[Service]
Type=forking

Environment=JAVA_HOME=/usr/lib/jvm/java-1.11.0-openjdk-amd64
Environment=CATALINA_PID=/opt/tomcat/latest/temp/tomcat.pid
Environment=CATALINA_HOME=/opt/tomcat
Environment=CATALINA_BASE=/opt/tomcat
Environment=’CATALINA_OPTS=-Xms512M –Xmx1024M –server –XX:+UserParallelGC’
Environment=’JAVA_OPTS=-Djava.awt.headless=true Djava.security.egd=file:/dev/./urandom’

ExecStart=/opt/tomcat/bin/startup.sh
ExecStop=/opt/tomcat/bin/shutdown.sh

User=tomcat
Group=tomcat
UMast=0007
RestartSec=10
Restart=always

[Install]
WantedBy=multi-user.target

Change Java-Home value.

4. Save and Exit the file (Ctrl+X, followed by y[es] and Enter).

5. For the changes to take place, reload the system daemon with the command:

sudo systemctl daemon-reload

6. Now, you can finally start the Tomcat service:

sudo systemctl start tomcat

7. Verify the Apache Tomcat service is running with the command:

sudo systemctl status tomcat

The message you want to receive is that the service is active (running).

Adjust Firewall

If you are using a firewall to protect your server (as you should), you will not be able to access the Tomcat interface. Tomcat uses Port 8080, which is outside your local network.

1. Open Port 8080 to allow traffic through it with the command:

sudo ufw allow 8080/tcp

2. If the port is open, you should be able to see the Apache Tomcat splash page. Type the following in the browser window:

http://server_ip:8080

or

http://localhost:8080

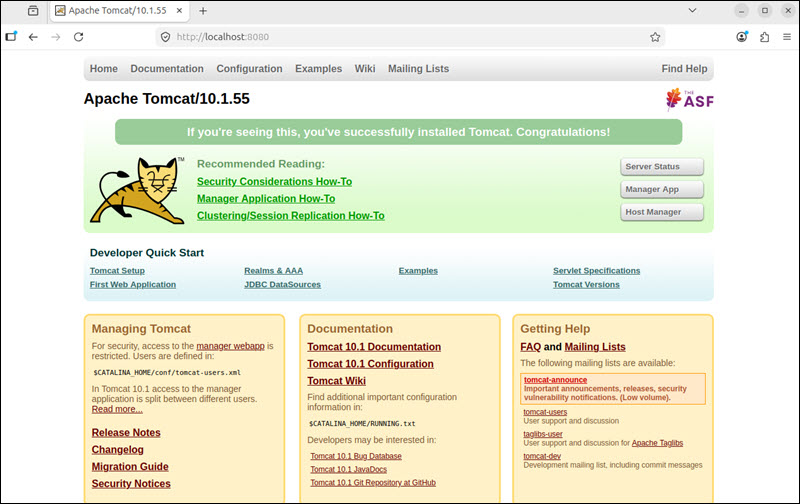

Your web browser should open the web page as in the image below:

Apache Tomcat Splash Page

Configure Web Management Interface

Once you verified the service is running properly, you need to create a user who can use the web management interface.

To do this, open and edit the users file.

1. Open the users file with the command:

sudo nano /opt/tomcat/latest/conf/tomcat=users.xml

The file should appear like the one in the image below:

Image after gaining access to Tomcat users file.

2. Scroll down and find the section specifying Tomcat users. Modify it by adding the following:

<tomcat-users>
<! --
Comments
-- >
<role rolename=”admin-gui”/>
<role rolename=”manager-gui”/>
<user username=”admin” password=”Your_Password” roles=”admin-gui, manager-gui”/>
</tomcat-users>

Make sure to replace the Your_Password value with a strong password of your preference.
3. Save and Exit the file.

Configure Remote Access

Finally, you need to configure remote access. This is required. By default, Tomcat is only accessible from the local machine.

1. First, open the manager file:

sudo nano /opt/tomcat/latest/webapps/manager/META-INF/context.xml

2. Next, decide whether to grant access from a) anywhere or b) from a specific IP address.

1) To make it publicly accessible, add the following lines to the file:

<Context antiResourceLocking=”false” privileged=”true”>
<! --

<Valve className=”org.apache.catalina.valves.RemoteAddrValve”
allow=”127\.\d+\.\d+\.\d+|::1|0000:1” />

-- >

</Context>

2) To allow access from a specific IP address, add the IP to the previous command, as follows:

<Context antiResourceLocking=”false” privileged=”true”>
<! --

<Valve className=”org.apache.catalina.valves.RemoteAddrValve”
allow=”127\.\d+\.\d+\.\d+|::1|0000:1|THE.IP.ADDRESS.” />

-- >

</Context>

3. Repeat the same process for the host-manager file.

Start by opening the file with the command:

sudo nano /opt/tomcat/latest/webapps/host-manager/META-INF/context.xml

4. Followed by granting access from a) anywhere or b) from a specific IP address (as in the previous step).

Conclusion

With the help of this guide, you have installed and setup Tomcat on Ubuntu 18.04! You now have a working Tomcat installation on your Apache server and can start deploying your Java web applications.
